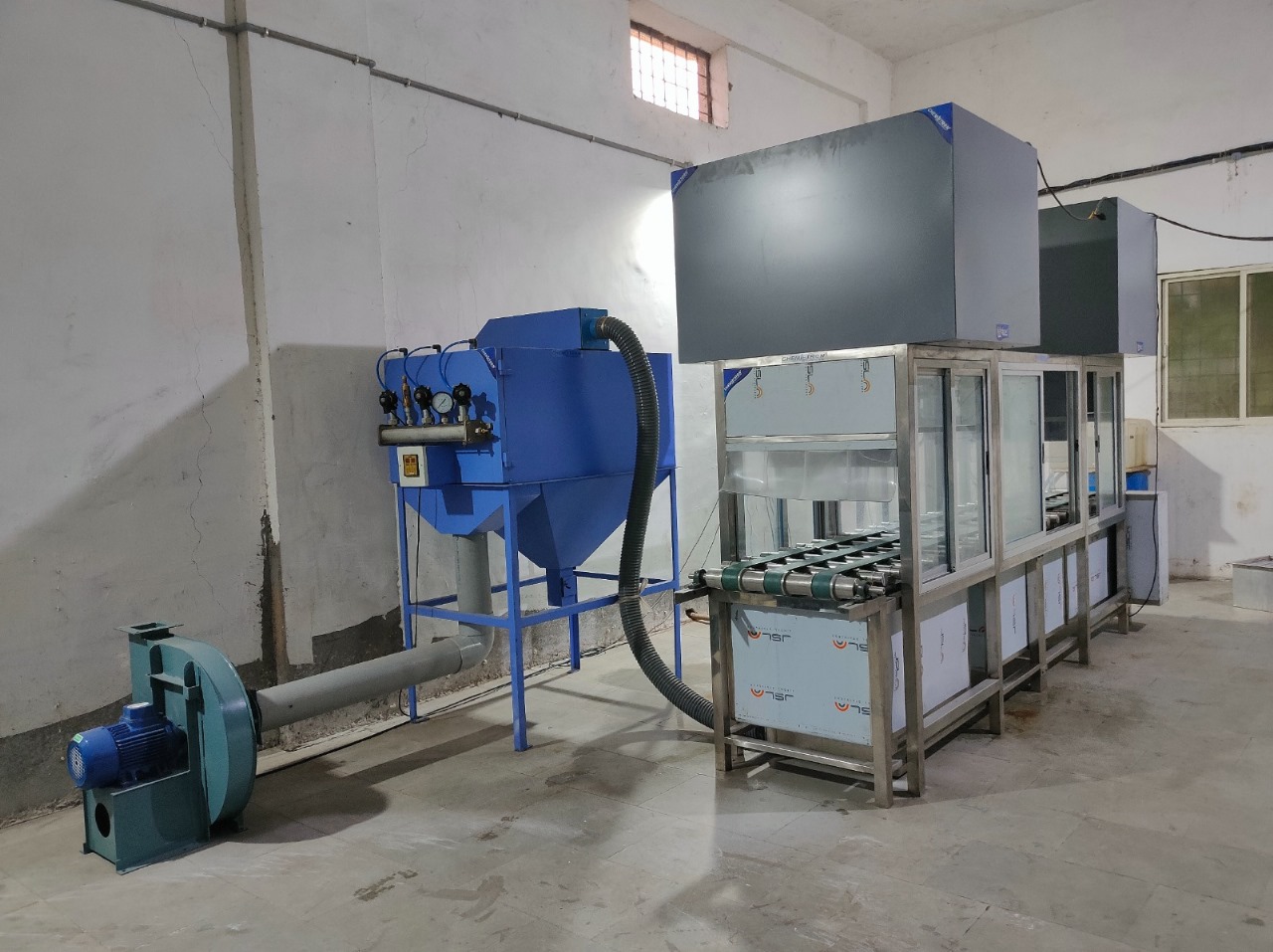

The Automatic Filter Cleaning Machine is a highly efficient system designed to clean pre-filters and fine filters used in various industrial applications, particularly in environments requiring high levels of filtration, such as pharmaceuticals, cleanrooms, and HVAC systems. This machine uses a sophisticated three-stage cleaning process to ensure filters are thoroughly cleaned and ready for reuse, thus extending their operational lifespan and maintaining high air quality.
Dedusting:
- High-pressurized air is used to dry dust particles from the filter, which are then collected in a sump and transferred to a dust collector for segregation.
High Pressure Water Jet:
- A powerful water jet impacts the filter, loosening dust and dirt, which is mixed with water and collected as dirty water in the sump.
De-watering and Drying:
- Hot air (60°C) is directed at the filter to remove remaining moisture and dust, ensuring the filter is thoroughly cleaned and dried.
This system accommodates filters ranging from 305 x 305 x 50 mm to 610 x 610 x 305 mm, making it ideal for high-efficiency filtration applications.
