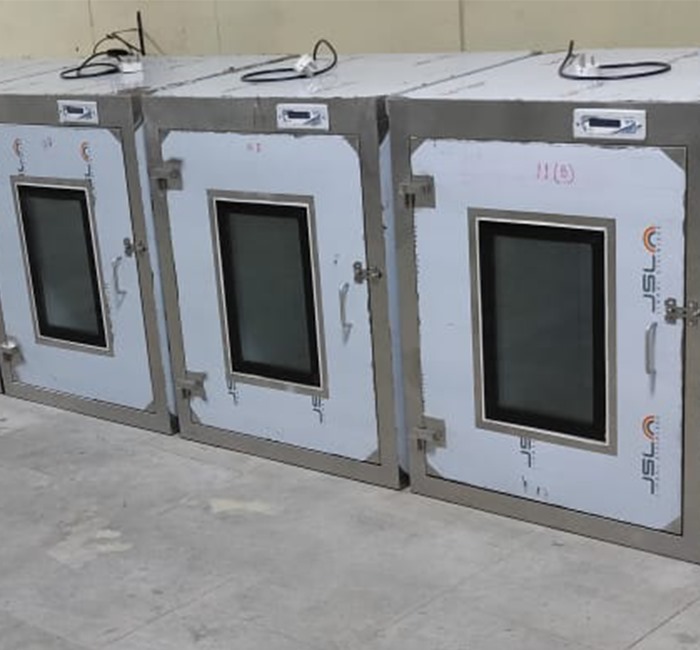

Pass boxes are essential for cleanrooms, providing a secure way to transfer materials without compromising the controlled environment. Static pass boxes are designed for non-powered transfers, ideal for areas with minimal contamination risk. Static pass boxes, ensure high-level decontamination during the transfer process. Durable, efficient, and customizable, our pass boxes enhance cleanliness and compliance in pharmaceutical, healthcare, and industrial settings.
Technical Specifications : -
| MOC | SS - 304 Skinned / Double Skinned |
|---|---|
| Door | Swing Type Double Door (Double skinned) with View Panel with SS Hinges & Handle |
| Fluorescent Light (interlocked with Door) | |
| UV Light with Hours meter (interlocked with Door) | |
| Internal Coving for easy cleaning | |
| Door Opening With Solid State mechanical interlocking Mechanism | |
| When both doors are closed, both electromagnetic locks are engaged. To open, press the touchscreen to release the door. | |
| At A Time Only One Door Opened | |
| Audio / Visual Indication for material is kept inside the pass box | |
| In close condition of both door : UV Light will be on, | |
| When open any one door : UV will off and FL will on | |
| Power Supply | 230V AC, single phase, 50HZ |
Options and Accessories
A wide range of configurations to suit any containment application:
- Electronic Interlocking Mechanism
- Bottom with thick base for heavy drum / material transfer
- Flush level with ground level for easy trolley transfer
- Flange for one side flush mount in clean room partition / wall
- FLP Electrical type for Explosion proof area
