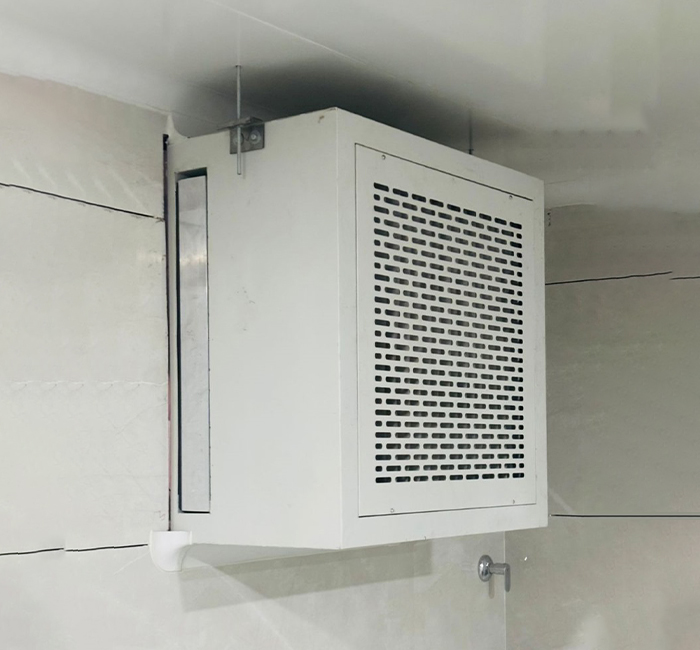

A Positive Pressure Module is a self-contained unit designed to maintain a higher pressure in cleanroom areas, preventing the ingress of contaminants from adjacent spaces. Equipped with HEPA/ULPA filters and integrated with HVAC systems, it ensures a continuous supply of clean, filtered air. These modules are ideal for creating localized sterile environments and comply with ISO and GMP standards.
| Cleanliness | Class 100/ISO CLASS 5/M 3.5 AREA |
|---|---|
| Velocity At Grill | 90 ± 20 Fpm |
| MOC | External Touching Part Do With: |
| Option 1 | S.S. 304 |
| Option 2 | G.I Powder Coated |
| Hepa Filters | Micro Fiberglass Paper Media Mini Pleated Hepa Filter Down To 0.3iµ Particulate At An Efficiency Of 99.997% (H 14) Duly Tested On Dop. |
| Pre-filters | Non-woven Synthetic Pre-filter Down To 10iµ Particulate At An Efficiency Of 90% |
| Blower Assembly | Dynamically And Statically Balanced Motor And Blower |
| Accessories | Dop/pao Test Port |
| Hook For Hanging | |
| Electrical | On/off Switch (For Blower) |
| 1mt. Wire With Plug Socket | |
| Pressure Measurement | 1 No. magnehelic Pressure Gauge To Check The Pressure Drop Across The Hepa Filter |
| Power Supply | 230 V, 50hz, Single Phase |
| Documentation | Dq, Iq, Oq (Our Factory Tested) |
