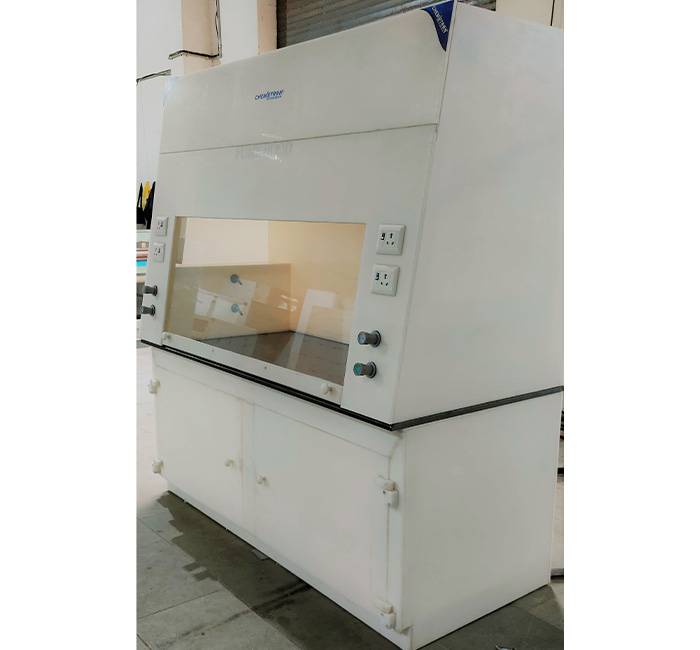

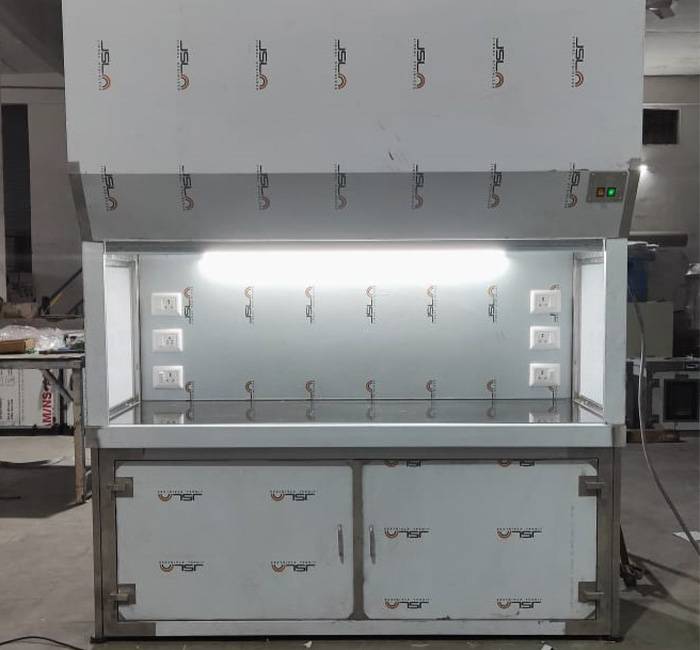

Chemietron make Polypropylene Fume Hood for protection of the personnel against toxic gasses and fumes by 100% exhaust to the outside.
Technical Specifications : -
| MOC | Main Unit - 100% fabricated with metallic or polypropylene sheet |
|---|---|
| Work Platform | Black Granite (15/20mm thick) |
| Sash (Shutter) | vertical opening |
| Sash movement with counter weight balance mechanism | |
| Made of polycarbonate / toughened glass | |
| Frame made from polypropylene or metallic sheet | |
| Counter weight balance cables made from PP Rope | |
| Utility | Gas Cock / Air Cock / Vacuum Cock |
| Air Flow | 100 % Air take from inside room through |
| Statically & Dynamically balanced Motor-blower | |
| Fluorescent Lights | |
| ON/OFF Switches on front fascia (BL / FL) | |
| Ducting | PVC Pipe / Flexible Duct |
| Weather proof rain cowl to be provided at the outlet of blower | |
| Noise Level < 75db at 1 meter from Fume Hood. | |
| Power Supply | 440V: 3 phase; 50Hz |
Options and Accessories
A wide range of configurations to suit any containment application:
- Base Cabinet with chemical storage cabinet (with air vent)
- Sink : Molded polypropylene sink with drain nipple
- Auxiliary Socket 5/15 Amp. As require qty.
- Velocity display with High / Low Alarms
- Filter chocking alarms
- Auxiliary Power Socket : 5/15 Amp for external equipment
- FLP Electrical type for Explosion proof area
Customized size : as per your requirement
