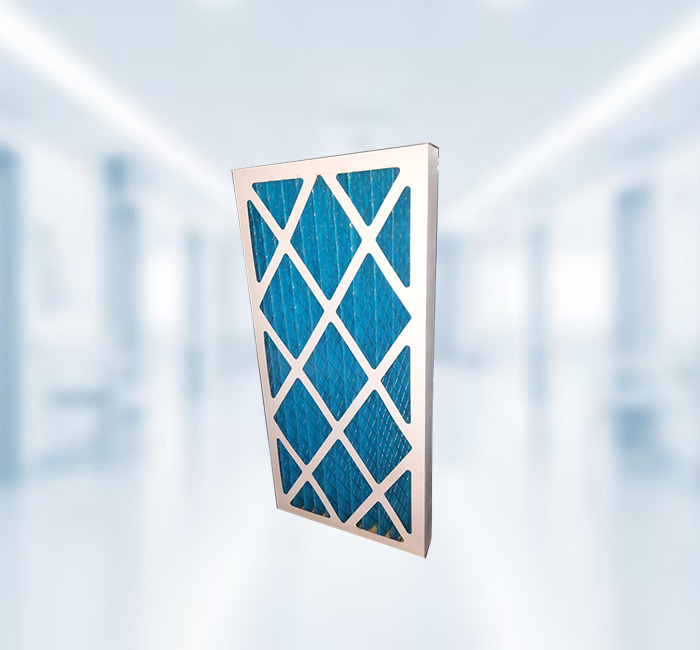

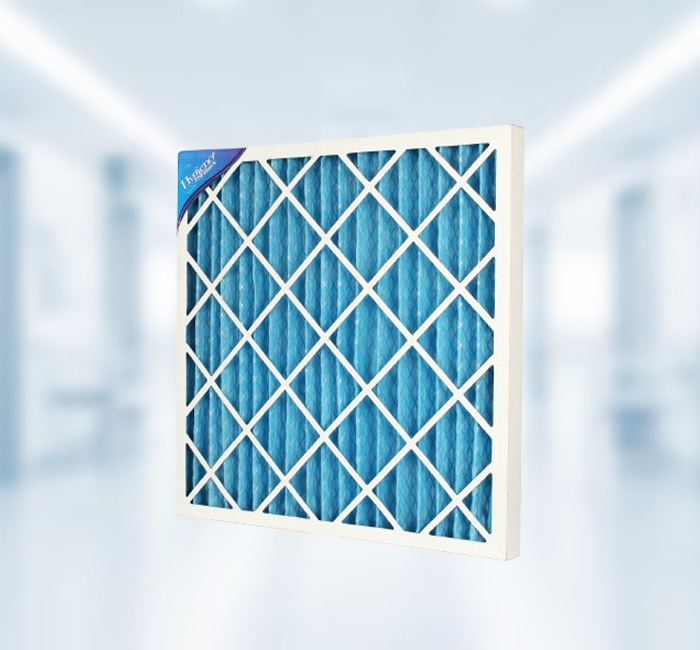

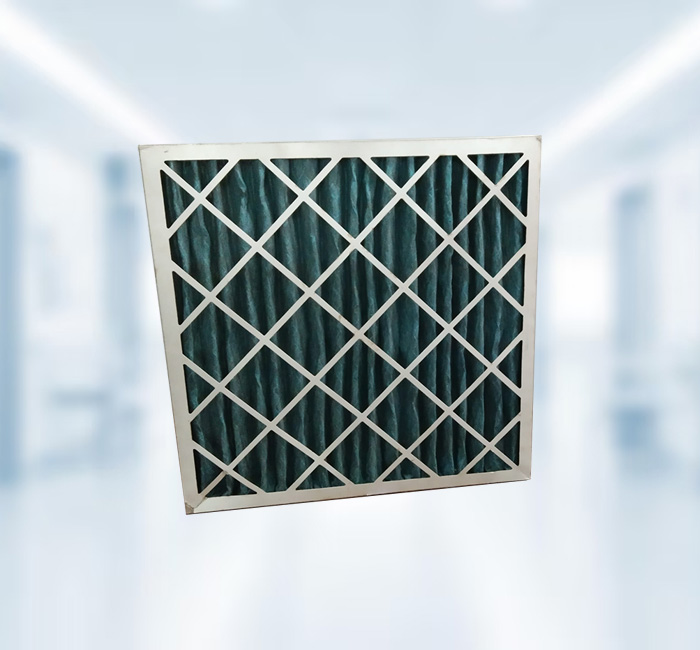

"HYGIENO" filters are manufacturers of DISPOSABLE PANEL FILTERS used for the primary filters in the AIR CONDITIONING system. The specialty of the G2 / G4 panel filter is its high air flow rate at low pressure drop with a long durability. The combination of the unique media, beverage board and pleating technology makes the filter, a low energy consuming product at the same time it performs well in all situations.
Advantages
- Made from lightweight cardboard frame
- Diagonal stiffener stuck to media to keep the spacing of folds, protect and maintain the filter
- Fully supported media bonded onto a wire support grid
| Application | Primary filter for air conditioning systems. |
|---|---|
| Type | High performance disposable pleated panel filter. |
| Case | Rigid and lightweight cardboard. |
| Media | Synthetic Fiber. |
| EN 779:2002 efficiency | G2 / G4 |
| Eurovent efficiency | EU2 / EU4 |
| Average arrestance | 90% |
| Final pressure drop | 150 / 250 Pa. |
| Rated Face Velocity (m/s) | 2.5 |
| Temperature | 70°C maximum in continuous service. |
| Max. Relative Humidity | 100% RH |
