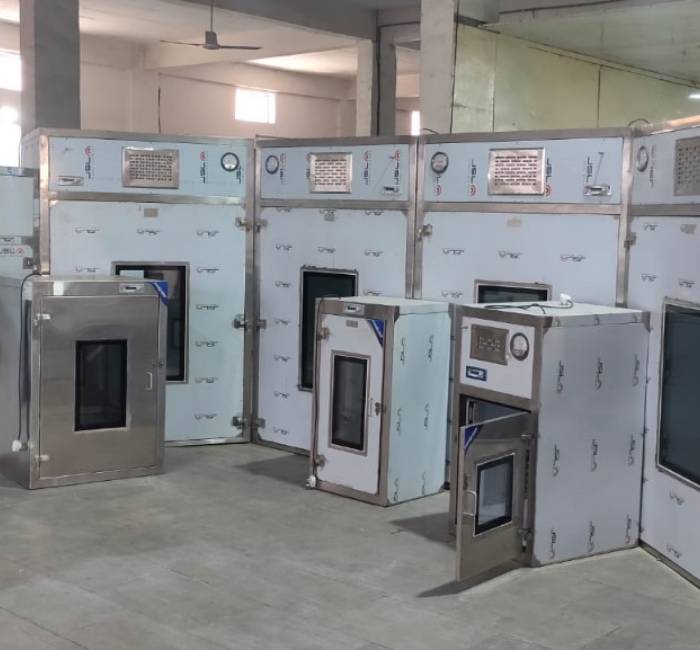

Our world class range of Dynamic Pass Boxes are designed in conformation to the international standards and are used for transferring the material from and into the classified clean room without contaminating the air of clean room. In the process, room door is not required to open. These can be easily installed on the wall between the classified room and unclassified room.
Technical Specifications : -
| Air cleanliness | ISO Class 5 / Class 100 / M 3.5 AREA |
|---|---|
| Air Velocities | 0.45 ± 0.05 mps (90 ± 20 FPM) |
| Air Flow | Vertical |
| Noise Level | Less than 65 dB |
| Vibration Level | Minimum |
| Power Supply | 230V AC, 1-Ø, 50HZ |
| MOC | SS-304 / SS-316 / Combination |
| Door | Swing Type Double Door (Double skinned) with View Panel with SS Hinges & D Handle |
| Internal Coving for easy cleaning | |
| Two Stage filtration | |
| EU7 - Intermediate Filter (95% down to 3 micron) | |
| EU14 - HEPA Filter - Supply / Exhaust (99.997% down to 0.3 micron) | |
| Fluorescent Lights (interlocked with Door) | |
| UV Light (interlocked with Door) | |
| Differential Pressure Gauges | 01 No. (HEPA Filter) |
| Door Opening With Solid State Electronic Inter Locking Mechanism | When both doors are closed, both electromagnetic locks are engaged. To open, press the touchscreen to release the door. |
| At A Time Only One Door Opened | |
| Audio / Visual Indication for material is kept inside the pass box | |
| In close condition of both door : UV Light will be on, | |
| When open any one door : UV will off and FL will on | |
| Additional Accessories | DOP/PAO port |
| Documentation | DQ, IQ, OQ, PQ |
Options and Accessories
A wide range of configurations to suit any containment application:
- Bottom with thick base for drum / material transfer
- Flush level with ground level
- Flange for one side flush mount in clean room partition / wall
- FLP Electrical type for Explosion proof
Customized size : as per your requirement
