The axial flow fan is efficient for air movement, utilizing a streamlined design that enhances airflow while minimizing energy consumption. This are the backbone of efficient ventilation and air movement across a range of industrial and commercial applications. Available in a variety of sizes, blade configurations, and motor speeds to suit diverse industrial needs. Our axial flow fans are designed to deliver high performance while maintaining low power consumption, reducing operational costs. Ideal for HVAC Systems, Industrial Ventilation, Warehouses and Manufacturing Units, Agricultural and Greenhouse Ventilation and many more.

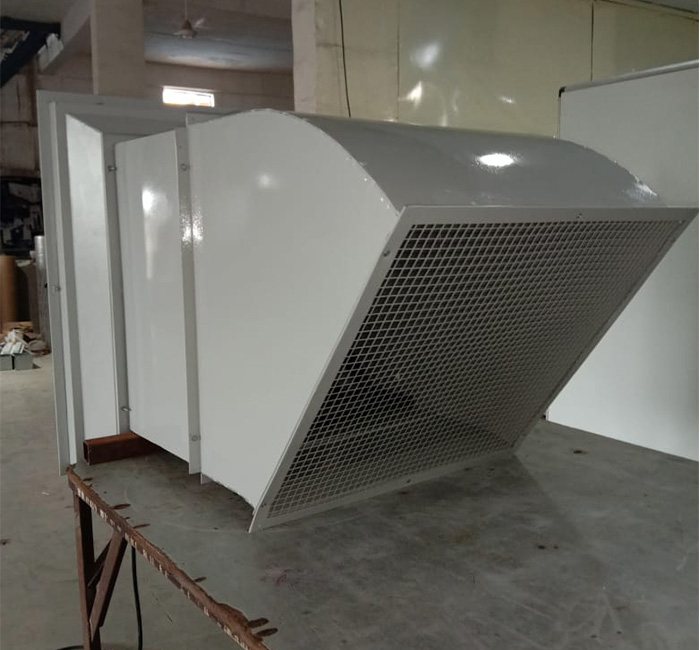

Axial Flow Fan (Square Shaped) Without Filter
| MOC | Body made with G.I. Powder Coated |
|---|---|
| Electric Motor (Non-FLP Type) | 1440 RPM & 1.0 / 1.5 HP |
| Duty | S1 (Continuous Operation type) |
| Power Supply | 50 Hz, Three Phase |
| Supply of 4000 CFM Axial Flow Fan (Cowl Shaped) without Air Filter | |
| Supply of 6000 CFM Axial Flow Fan (Cowl Shaped) without Air Filter |

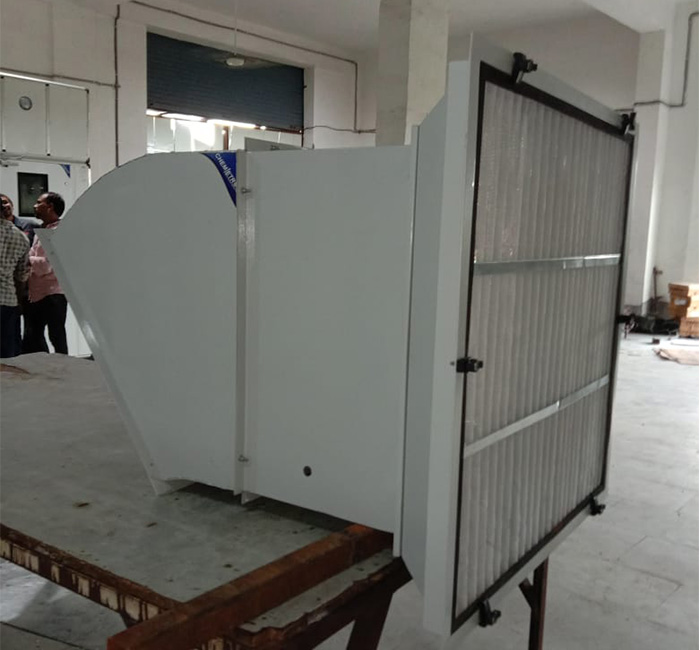

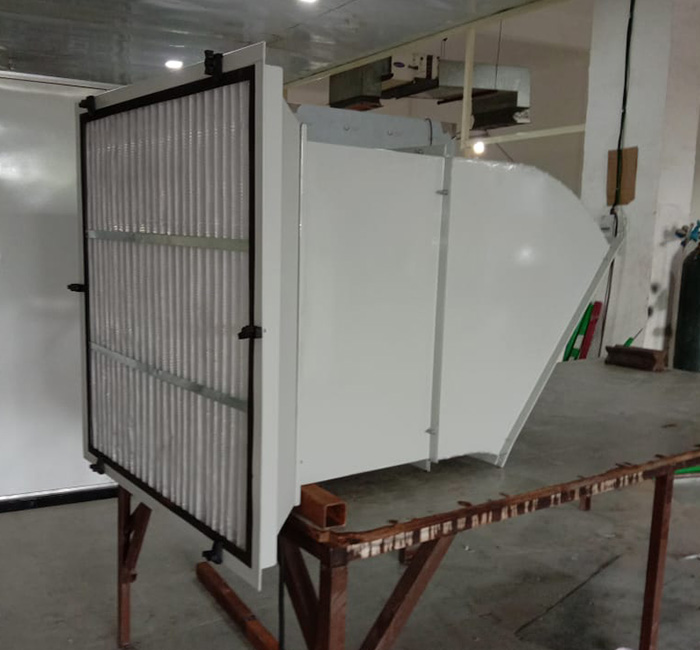

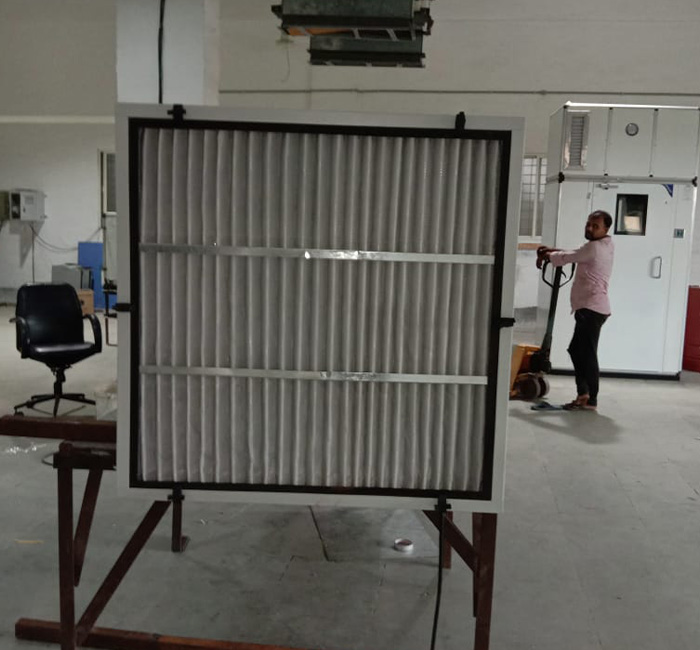

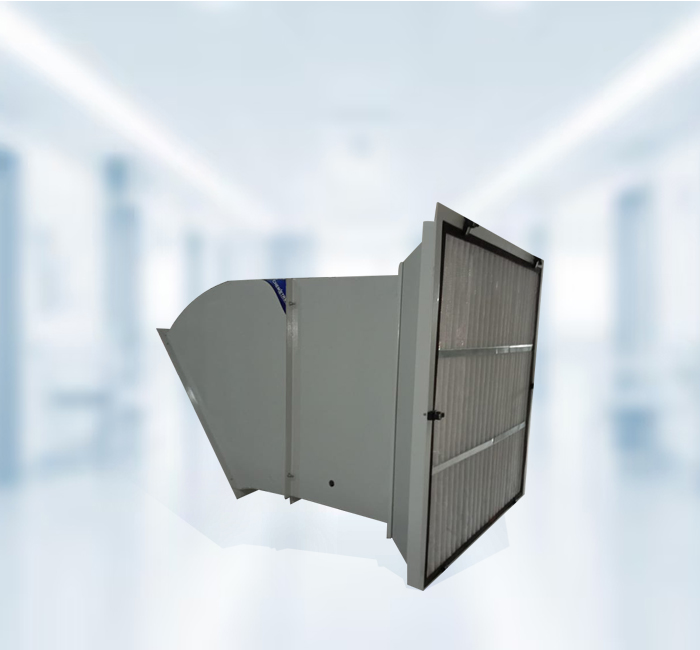

Axial Flow Fan (Square Shaped) With Filter
| Pre-Filter | 90% down to 20iµ (EU2 Grade) |
|---|---|
| Static pressure | 10 mm WG, |
| MOC | Body made with G.I. Powder Coated |
| Electric Motor (Non-FLP Type) | 1440 RPM & 1.0 / 1.5 HP |
| Duty | S1 (Continuous Operation type) |
| Power Supply | 50 Hz, Three Phase |
| Supply of 4000 CFM Axial Flow Fan (Square Shaped) with Air Filter | |
| Supply of 6000 CFM Axial Flow Fan (Square Shaped) with Air Filter |
