HYGIENO FILTER's provides high-efficiency ASHRAE air filtration performance in a compact, supported media design.
feature / benefits
- High dust holding capacity
- Excellent arrestance
- Suitable for Commercial & Industrial Application
- Low pressure drop

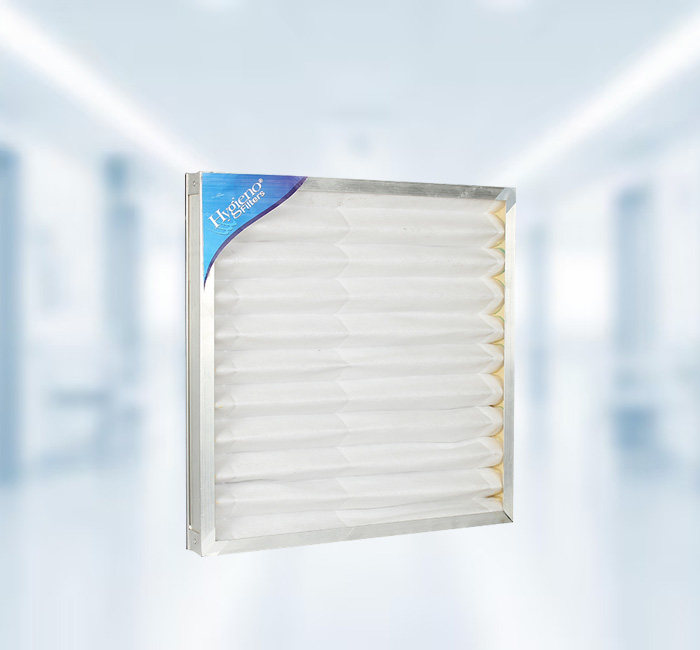

The washable pleated panel filter is made from nonwoven needle punched synthetic media and this is embedded within a galvanized steel/ Aluminum/ Stainless Steel frame with EPOXY sealing ensuring non air bypass. It gives excellent performance in conditions of high relative humidity.
| Application | Primary filter for air conditioning systems. |
|---|---|
| Type | Pleated synthetic fiber media |
| Case | Galvanized steel / Aluminum / Stainless Steel |
| Media | Mixture of cotton and synthetic fiber. |
| EN 779:2002 efficiency | G2 / G4 |
| Eurovent efficiency | EU2 / EU4 |
| Average arrestance | 90% down to 20µ / Down to 10µ |
| Pressure drop | 40 To 200 Pa. |
| Rated Face Velocity (m/s) | 2.5 |
| Temperature | 70°C maximum in continuous service. |
| Max. Relative Humidity | 100% RH |
