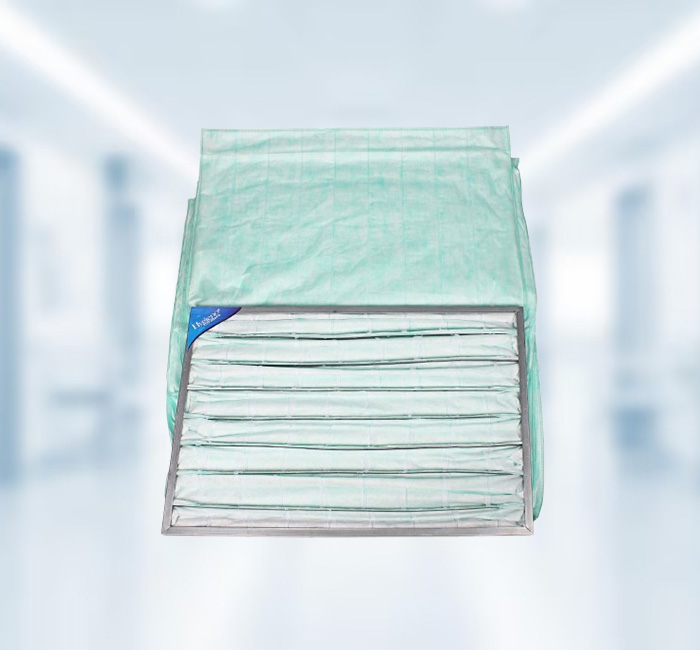

"Hygieno" filters are manufacturing bag filters for the primary & secondary filtration for air conditioning system. Pocket & bags are manufactured from 100% synthetic fibers, which are formed into a high loft blanket that is designed to achieve a low initial resistance and high dust holding capacity. The media is formed into pockets by sealing them to assure proper pocket inflation and elimination of air bypass.
feature / benefits
- High air flow rate
- Low initial pressure drop
- Sturdy construction
- Very High dust holding capacity
Advantage
- The pocket provides excellent performance as a pre-filter to medium and high efficiency filters or as a stand-alone filter in commercial HVAC system, unit ventilators and fan coil units. The fibers are not affected by moisture and therefore, synthetic pocket is a perfect choice for high humidity of intermittent moisture conditions.
| Application | Filtration for fine particle in AHU & Ventilation System |
|---|---|
| Type | Pocket Filter |
| Case | Galvanized steel / ABS |
| Media | Progressive structure synthetic fiber. / Glass Fibre |
| EN 779:2002 efficiency | F5 / F7 |
| Eurovent efficiency | EU5 / EU7 |
| Average arrestance | 75 to 80% |
| Temperature | 80°C maximum in continuous service. |
| Max. Relative Humidity | 100% RH |
